Rinda Technologies
Marine EFI Tools
for 2003

Diacom Marine
PC Software

Diacom Marine is a powerful Windows based diagnostic tool that is revolutionizing marine engine service.  With advanced engine control systems now standard on nearly all gasoline inboard and stern drive engines, you need a service tool that pinpoints problems quickly and accurately.

Diacom Marine unlocks the computing power of your notebook PC and provides state-of the- art features that simply leave other diagnostic tools in it’s wake.

Detailed Product Brochure

Marine Product Catalog

Request Information via US Mail

Part #94010

MerCruiser Scan Tool

Developed in conjunction with MerCruiser engineers, this self-contained diagnostic tool displays complete EFI system information allowing you to quickly pinpoint engine related problems. The tool performs a complete range of EFI system tests and also contains a built-in programmable fuel injector tester. This tool is the choice of MerCruiser and independent marine dealers worldwide.

Easy to operate and very affordable, the MerCruiser Scan Tool is available in both Domestic and Six Language International versions.

Click here for technical specifications.

CodeMate
EFI Code Reader

This pocket size tester serves as both an EFI Problem Indicator and a Spark Timing service tool. It is the perfect tool for low volume marine repair shops that troubleshoot a small number of EFI systems a year. This tool is the minimum required service tool needed to perform GM marine EFI diagnostic procedures. CodeMate allows fault codes to be read and allows base spark advance to be set when used with a timing light.

Download Information & Pricing

Request Information via US Mail

Part #94008

IAC Signal Tester

Diagnosing Idle Air Control problems on EFI engines can be a real challenge without the proper test equipment. This electronic diagnostic tester is used to check the condition of the ECM's Idle Air Control electronic driver circuit. The ECM's driver circuit controls the movement of the IAC motor's air bypass valve and thereby allows the ECM to regulate idle speed. This tester provides a visual display of the ECM's two IAC driver signals and indicates both the polarity and switching activity of the IAC signals. This is a real time saving device when troubleshooting IAC problems.

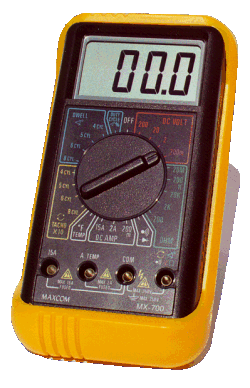

EFI Digital Multi-Meter

Designed for industrial and automotive use, this high impedance digital tester is ideal for EFI troubleshooting.  Features include an extra large LCD display, tach, dwell, duty cycle and temperature functions. Also performs continuity, DC volts, DC current and diode tests. Unit is supplied complete with a protective holster carrying case, test leads and temperature probe.

Download Information & Pricing

Request Information via US Mail

Part #98004

Scan Tool Adapter Kit

Used in conjunction with the Mercruiser Scan Tool or Diacom Marine software, this adapter kit contains all the adapters needed for connection to the different modules supported by the Scan Tool and Diacom Software.  Included in the kit are: Thunderbolt V (1) adapter, 2.8L  4.3L 7.3L D-Tronic Diesel (2) and Mercury Outboard (2) High Performance adapters.

Download Information & Pricing

Request Information via US Mail

Part #94035

EFI Sensor
Test Lead Kit

This complete kit of adapters is designed to make the job of testing EFI sensors a whole lot easier!  Properly functioning sensors are absolutely essential on any EFI equipped engine.  When your diagnostic tool indicates a sensor problem, your next task is to verify the sensor's operation with a digital voltmeter or sensor tester. Most voltmeters and sensors testers are supplied with insulation piercing test probes which punch a hole in the sensor wire's insulation providing a path for moisture and corrosion.  These test adapters clip directly onto the sensor and provide easy access to the sensor's voltage supply and output terminals without piercing the wires!  Save time and frustration.  The kit includes adapters for MAP, IAC, CTS, MAT, TPS and Knock sensors.

Download Information & Pricing

Request Information via US Mail

Part #94025

  Version 4.01 has been released!
               (Click here for more information!)

            Scan Tool Update Installation Guide! (75 KB)


Software Updates

Be sure your diagnostic tools are equipped with the latest software.  Version 4.01 software has been released for both the MerCruiser and TechMate scan tools.  The software provides many new features that will assist you in your diagnostic work.  If you are not sure which version of software is currently running in your scan tool, you can find out by observing the tool's display screen when it is initially powered on. A new revision of Diacom plus software is also available which supports new electronic systems released by MerCruiser and other marine engine manufacturers. Please contact us for more information.

Download Information & Pricing

Request Information via US Mail
